| Product Attribute | Attribute Value |
|---|---|
| Backlighting | Backlight |
| Communication | Extensive List of Industrial Devices |
| Depth | 2.48" (63mm) |
| Dimensions | 262 x 207.8 x 63 mm |
| Display Colors | Color |
| Display Resolution | 640 x 480 Pixels |
| Display Size | 7.5 Inch Display |
| For Use With | PLCs, Motor Drives and other Industrial Devices |
| HMI Type | Touch Screen HMI |
| Length | 10.315" (262mm) |
| Maximum Operating Temperature | 50 C |
| Memory | 32 Mb Flash |
| Minimum Operating Temperature | 0 C |
| Mounting Type | Chassis Mount |
| Number of Ports | 7 Port |
| Port Style | RS-232/422/485 and Ethernet |
| Primary Type | Operator Interface |
| Resolution | 640 × 480 |
| Resolution, Display | 640 × 480 |
| Series | |
| Size | 7.5" Color TFT |
| Special Features | Web-Server, UL and Class I Div.2 |
| Supply Voltage | 24VDC |
| Technology | TFT LCD Display |
| Temperature Operating Range | 0 to 50 C |
| Type | Color Graphic |
| Voltage Rating | 24 VDC |
| Width | 8.181" (207.8mm) |
Overview

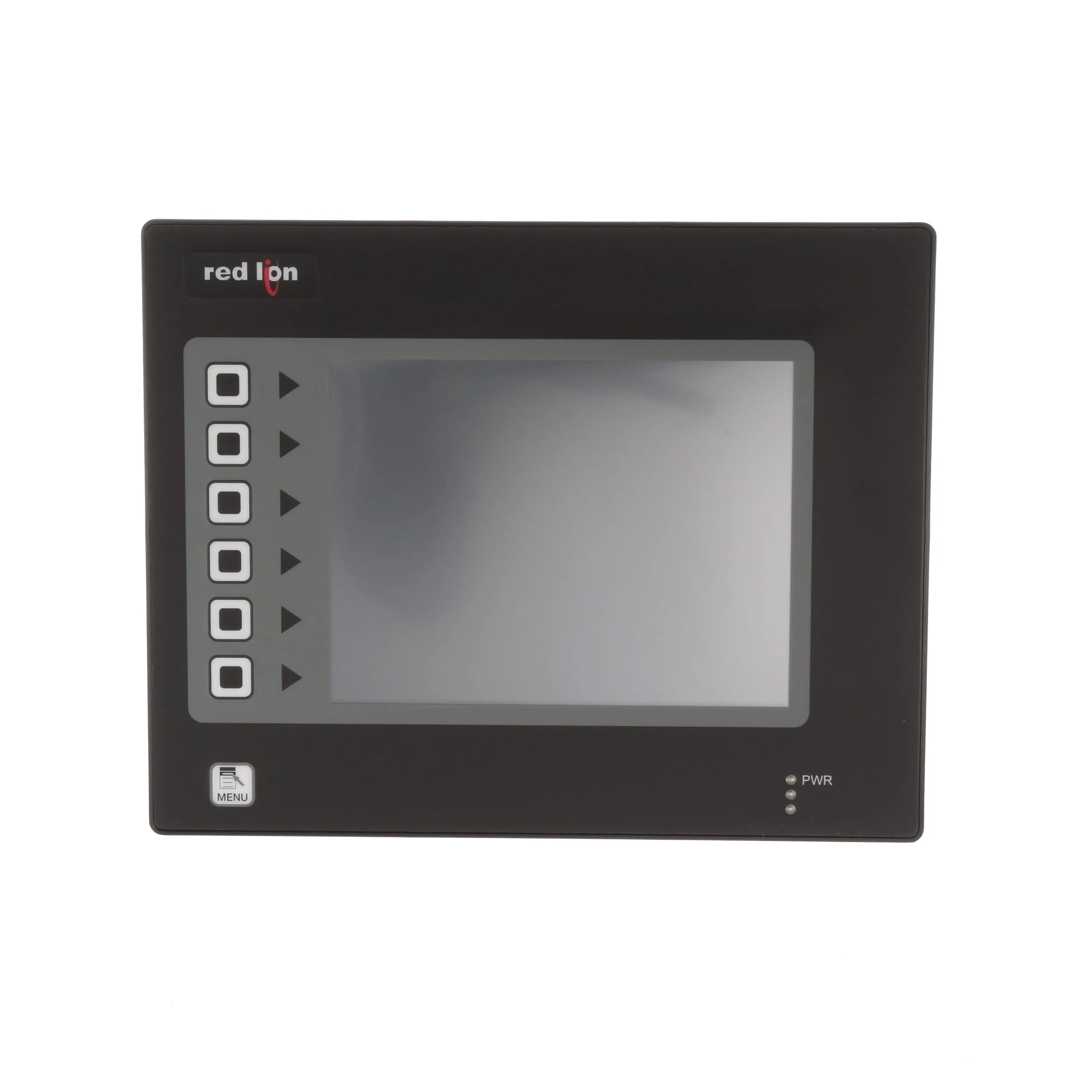

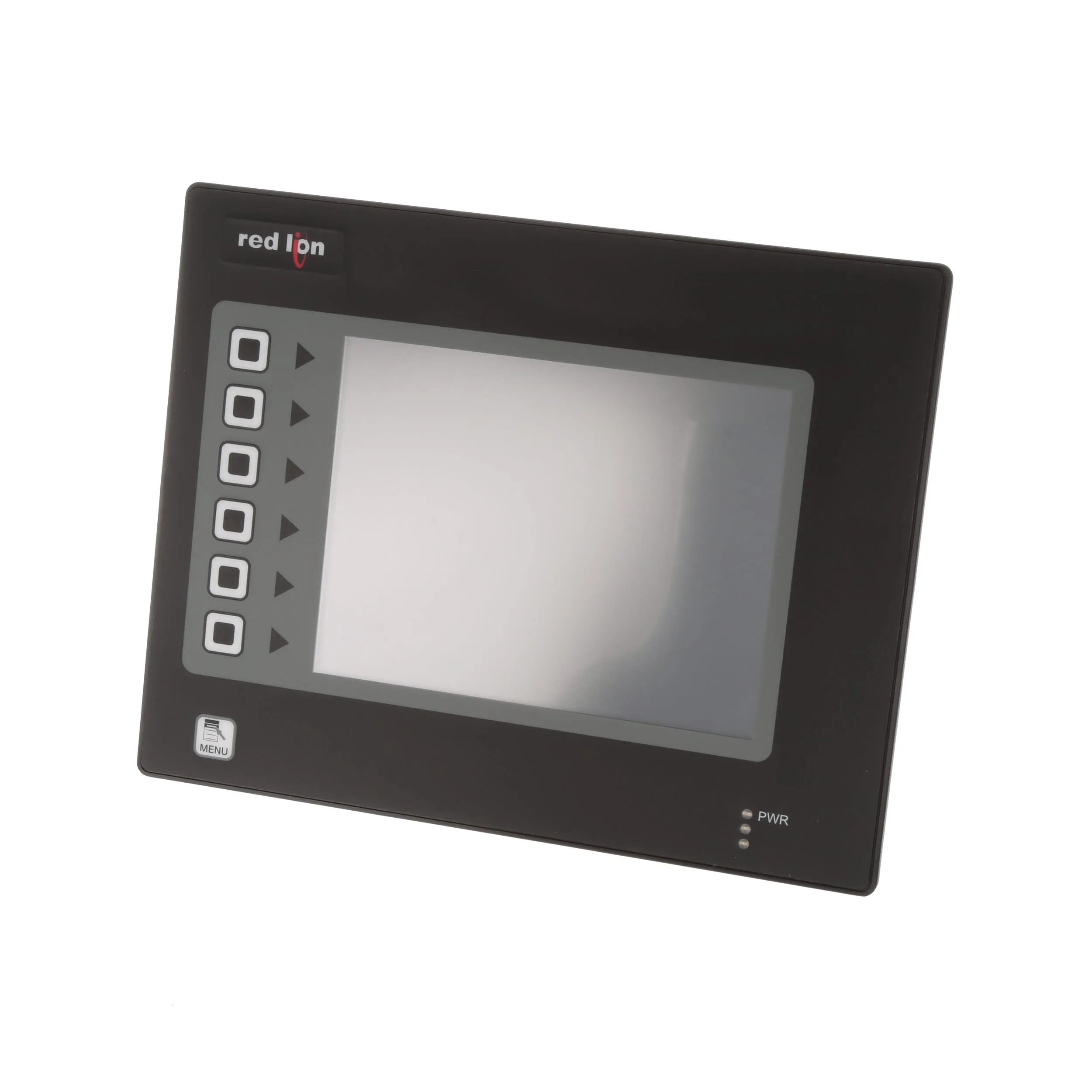

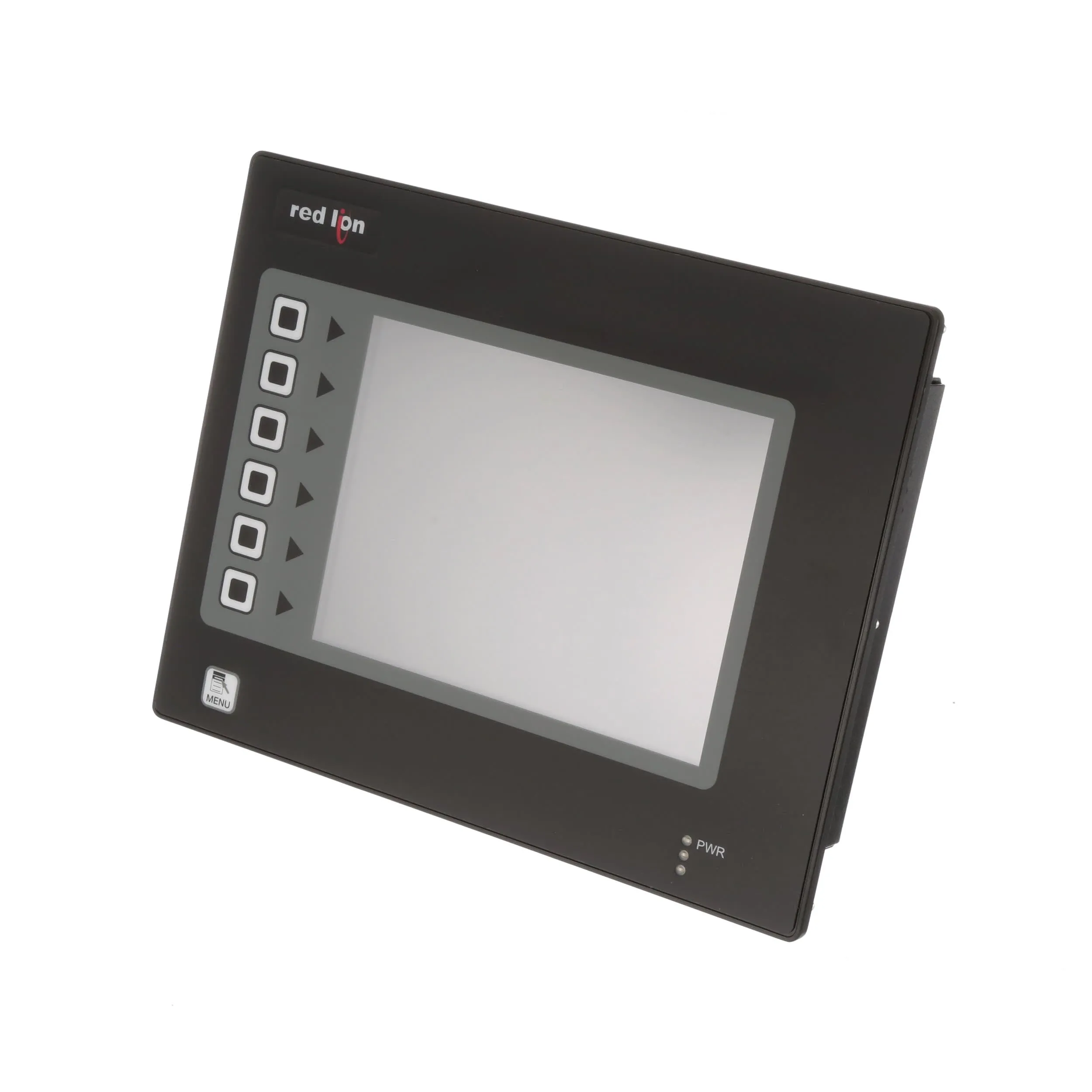

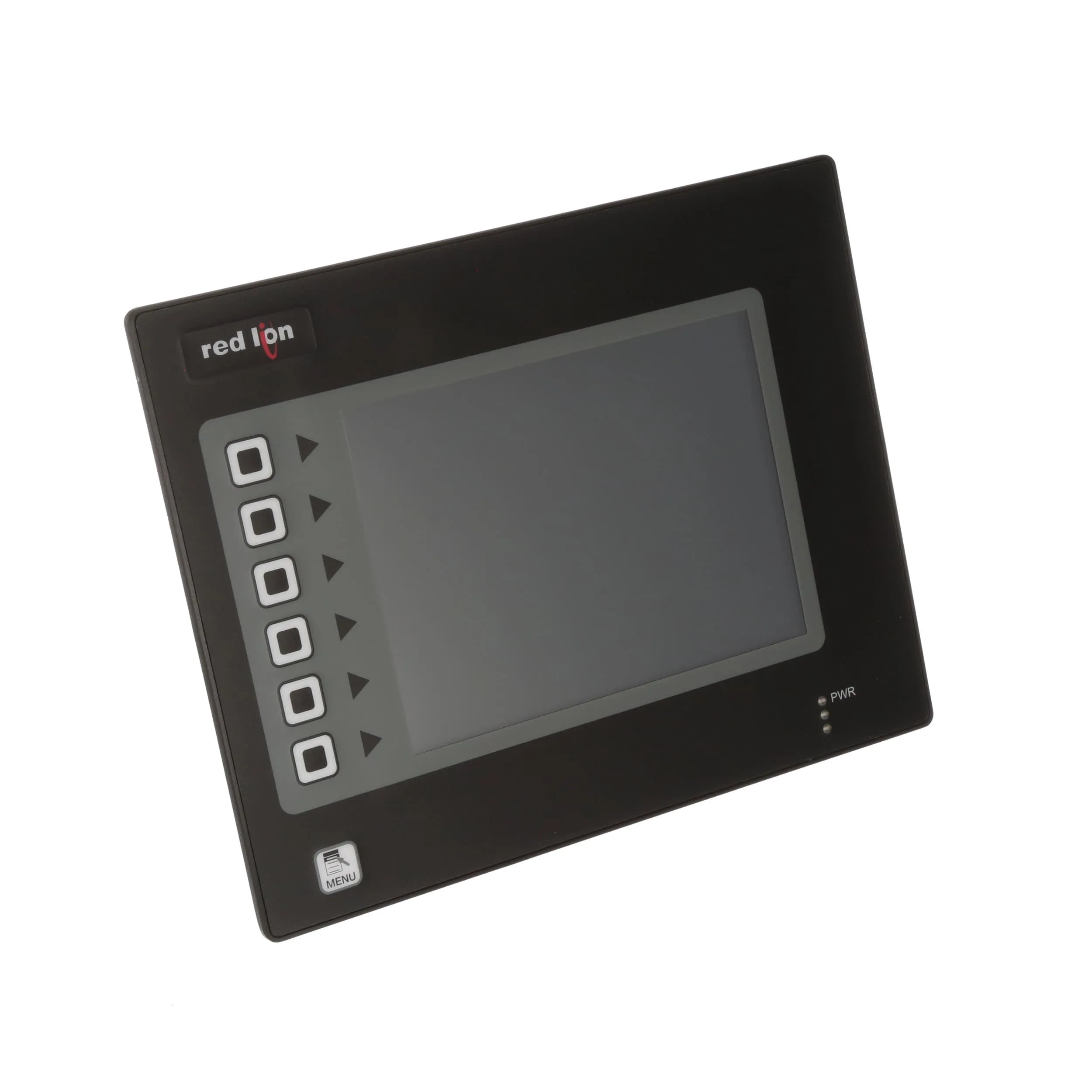

The G310 Operator Interface Terminal combines unique capabilities normally expected from high-end units with a very affordable price. It is built around a high performance core with integrated functionality. This core allows the G310 to perform many of the normal features of the Paradigm range of Operator Interfaces while improving and adding new features. The G310 is able to communicate with many different types of hardware using high-speed RS232/422/485 communications ports and Ethernet 10 Base T/100 Base-TX communications. In addition, the G310 features USB for fast downloads of configuration files and access to trending and data logging. A CompactFlash socket is provided so that Flash cards can be used to collect your trending and data logging information as well as to store larger configuration files. In addition to accessing and controlling of external resources, the G310 allows a user to easily view and enter information. An outdoor version is available for direct sunlight applications. Users can enter data through the touchscreen or front panel 8-button keypad.
