| Product Attribute | Attribute Value |
|---|---|
| Backlighting | Backlight |
| Communication | USB, RS232 Port via RJ12, RS422/RS485 Port via RJ45, 10 BASE-T Ethernet, 100 BASE-TX Ethernet |
| Depth | 0.079" (2mm) |
| Dimensions | 153.4 x 112.8 x 52 mm |
| Display Colors | Color |
| Display Resolution | 128 x 64 Pixels |
| Display Size | 3 Inch Display |
| For Use With | Hazardous Locations |
| HMI Type | Pushbutton HMI |
| Length | 6.039" (153.4mm) |
| Maximum Operating Temperature | 50 °C |
| Memory | 4 Mb Flash |
| Minimum Operating Temperature | 0 °C |
| Mounting Type | Chassis Mount |
| Number of Ports | 5 Port |
| Port Style | RS232, RS422, RS485, Ethernet |
| Primary Type | Operator Interface |
| Resolution | 128 × 64 Pixel LCD |
| Resolution, Display | 128 × 64 |
| Series | |
| Size | 3 In. Mono LCD |
| Standards | CE Approved, cULus Listed |
| Supply Voltage | 24VDC |
| Technology | FSTN LCD Display |
| Temperature Operating Range | 0 to 50 °C |
| Type | Color Graphic |
| Voltage Rating | 24 VDC |
| Width | 4.441" (112.8mm) |
Overview

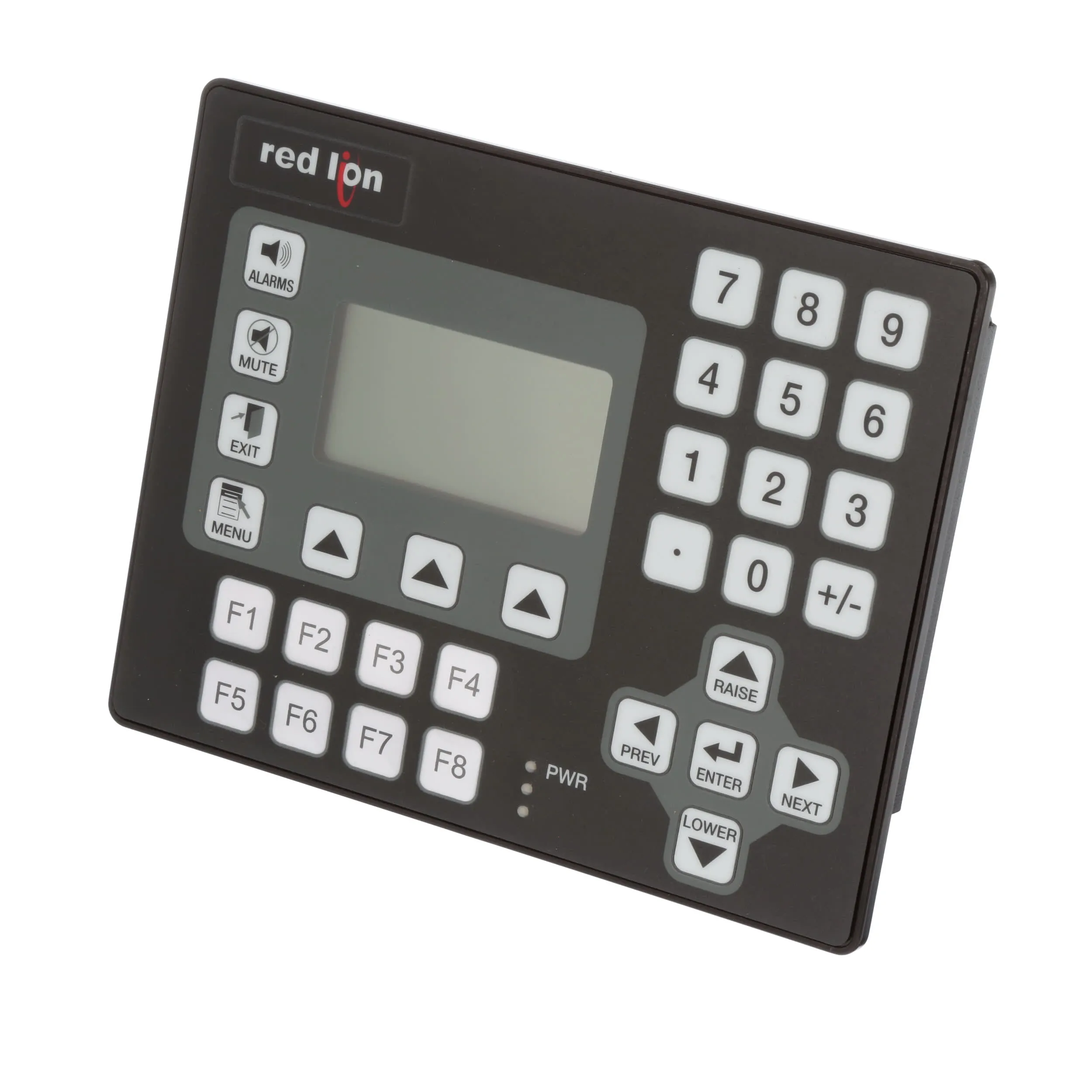

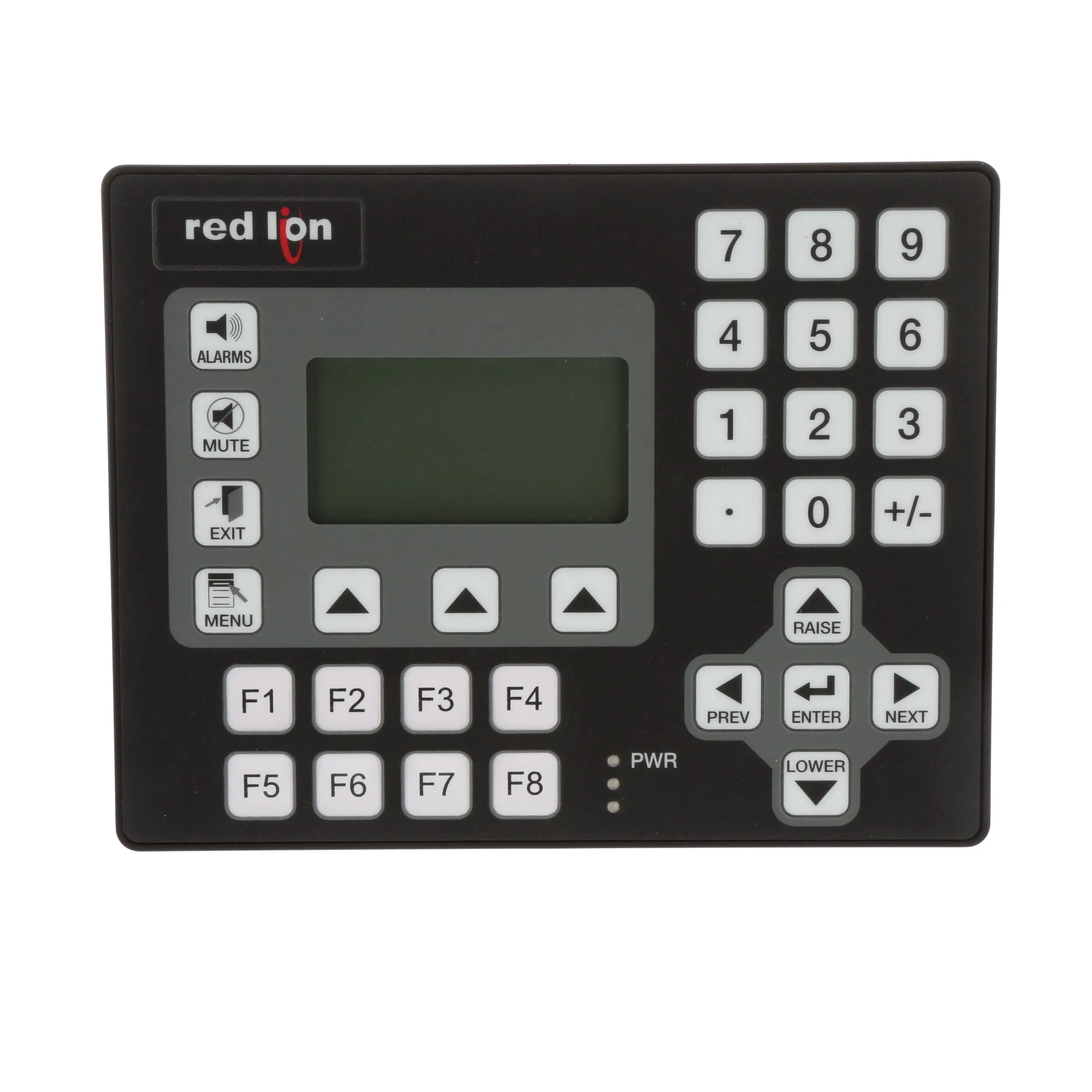

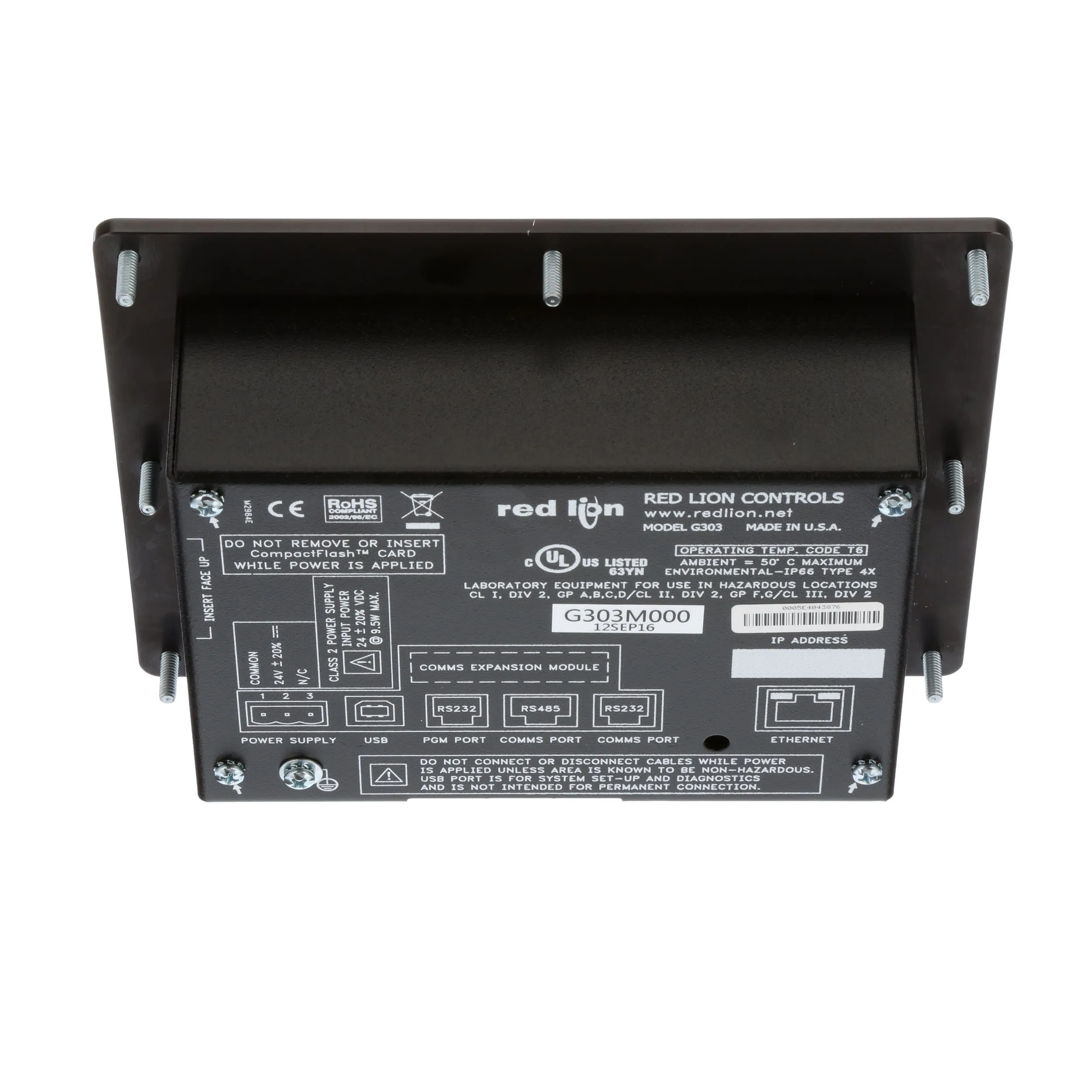

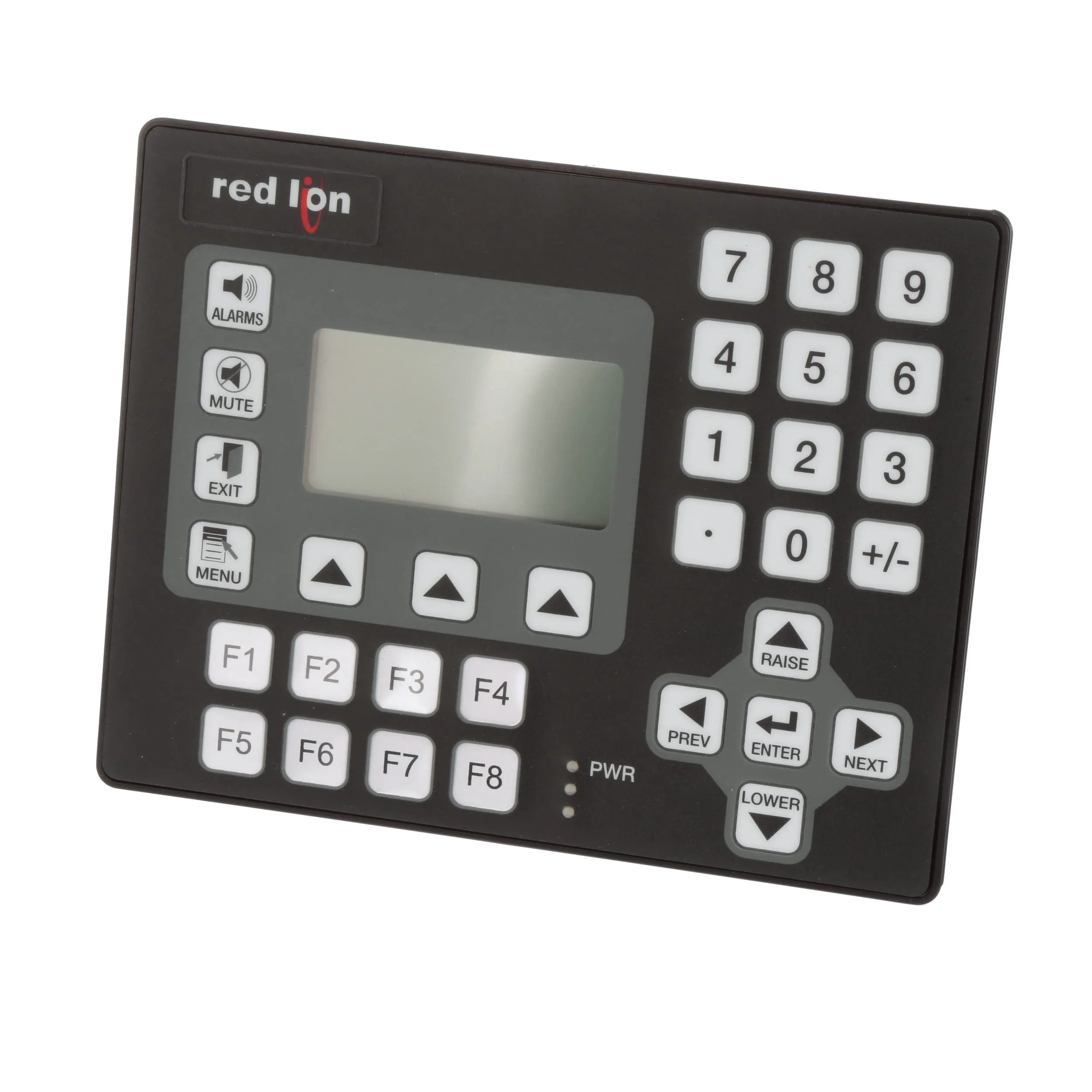

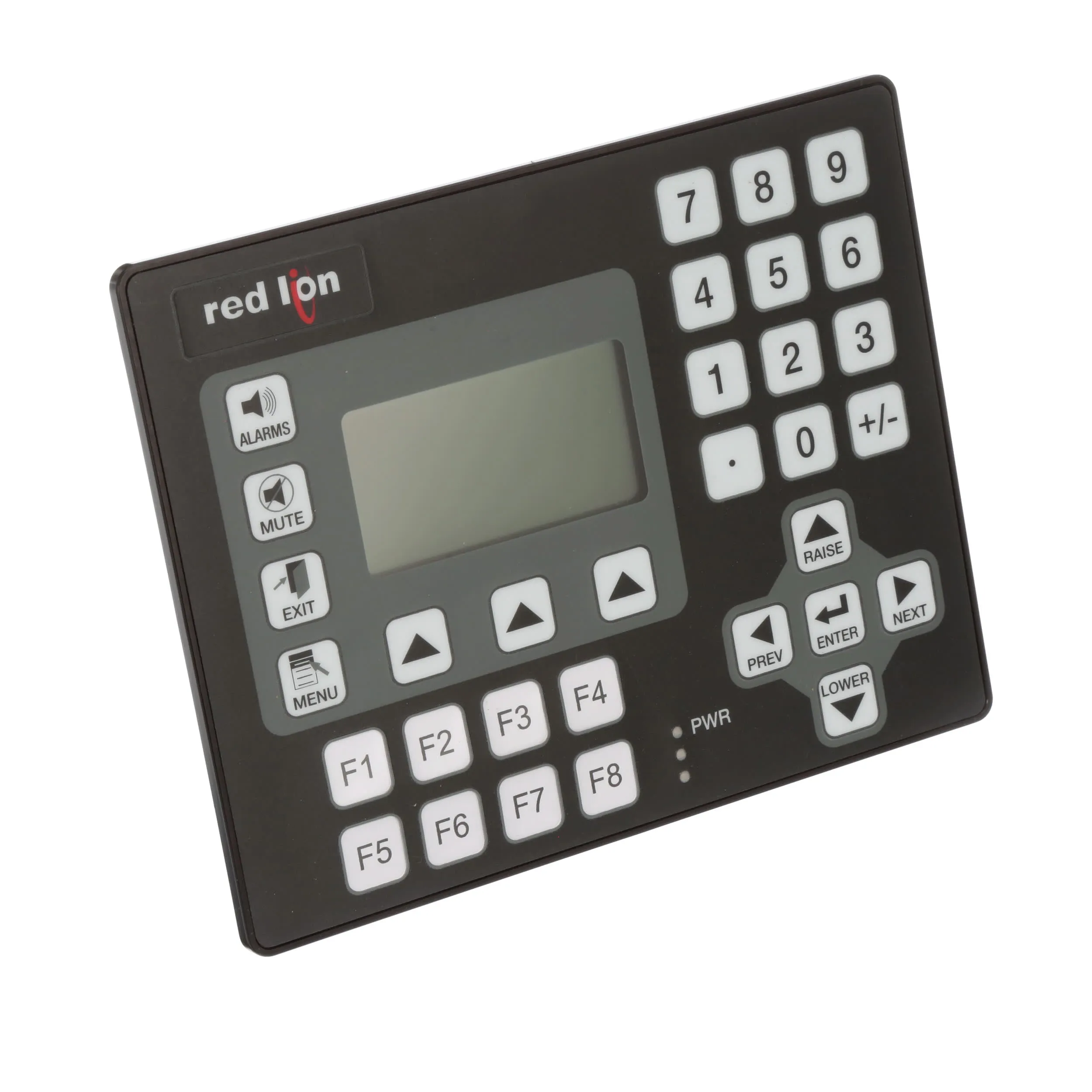

The G303 Operator Interface Terminal combines unique capabilities normally expected from high-end units with a very affordable price. It is built around a high performance core with integrated functionality. This core allows the G303 to perform many of the normal features of the Paradigm range of Operator Interfaces while improving and adding new features. The G303 is able to communicate with many different types of hardware using high-speed RS232/422/485 communications ports and Ethernet 10 Base T/100 Base-TX communications. In addition, the G303 features USB for fast downloads of configuration files and access to trending and data logging. A CompactFlash socket is provided so that Flash cards can be used to collect your trending and data logging information as well as to store larger configuration files. In addition to accessing and controlling of external resources, the G303 allows a user to easily view and enter information. The unit uses a Liquid Crystal Display (LCD) module, which is easily readable in both indoor and outdoor applications. Users can enter data through the front panel 32-button keypad that has user identifiable keys.
