Description

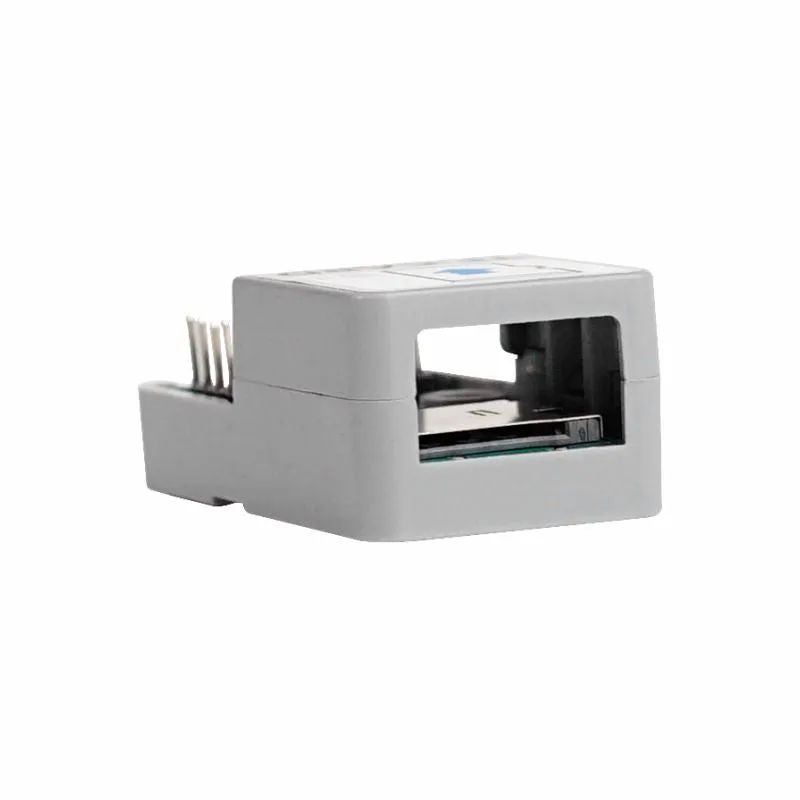

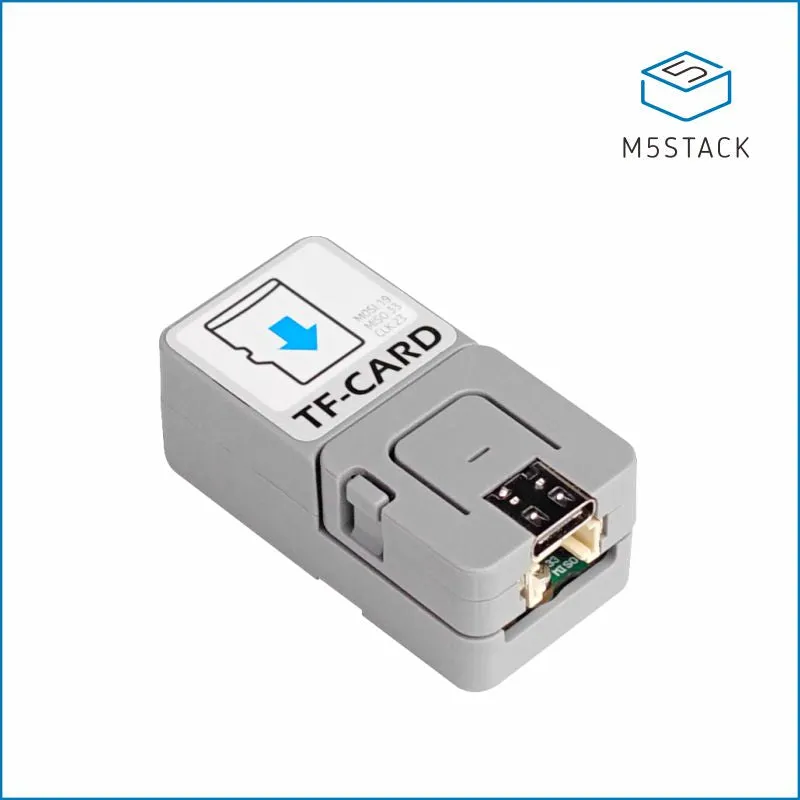

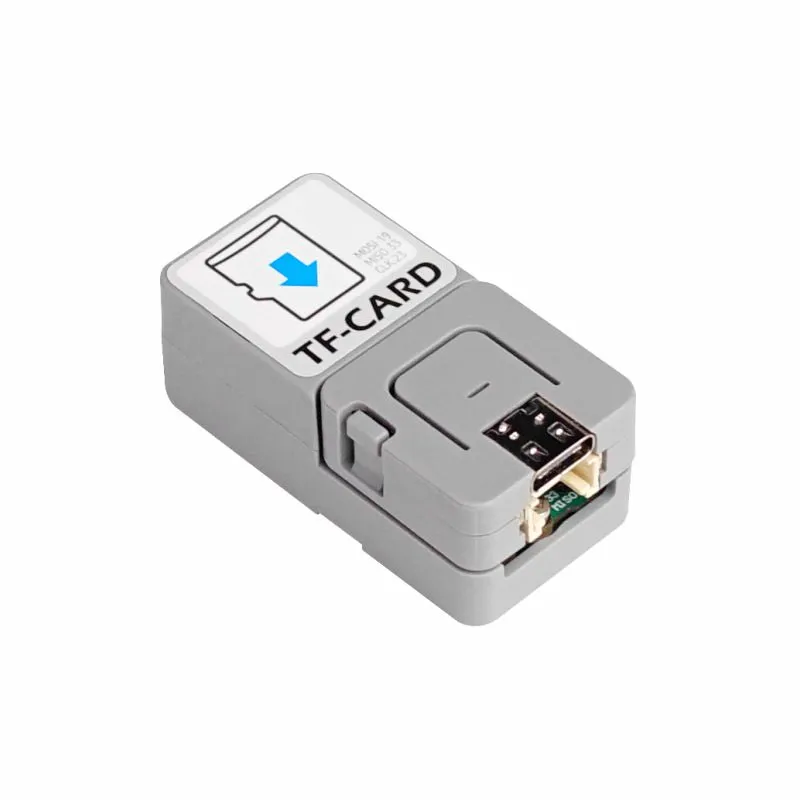

ATOM TF-CARD is a TF (MicroSD) card read/write module based on Atomic. It features a self-ejecting card slot design and supports TF cards with a capacity of up to 16GB. With this module, you can store essential configuration files and user data in the TF card, allowing you to access these files at any time during program execution.
By utilizing the TF card read/write module, you can significantly reduce the utilization of valuable Flash space by external resource files. This module provides a convenient solution for storing and accessing important program files and data, enabling efficient management of resources and optimizing the usage of Flash memory.
Product Features
- Compatible with ATOM Matrix/ ATOM Lite
- Up to 16G TF card
- FAT/FAT32 format
- Self elastic TF-card (microSD) slot

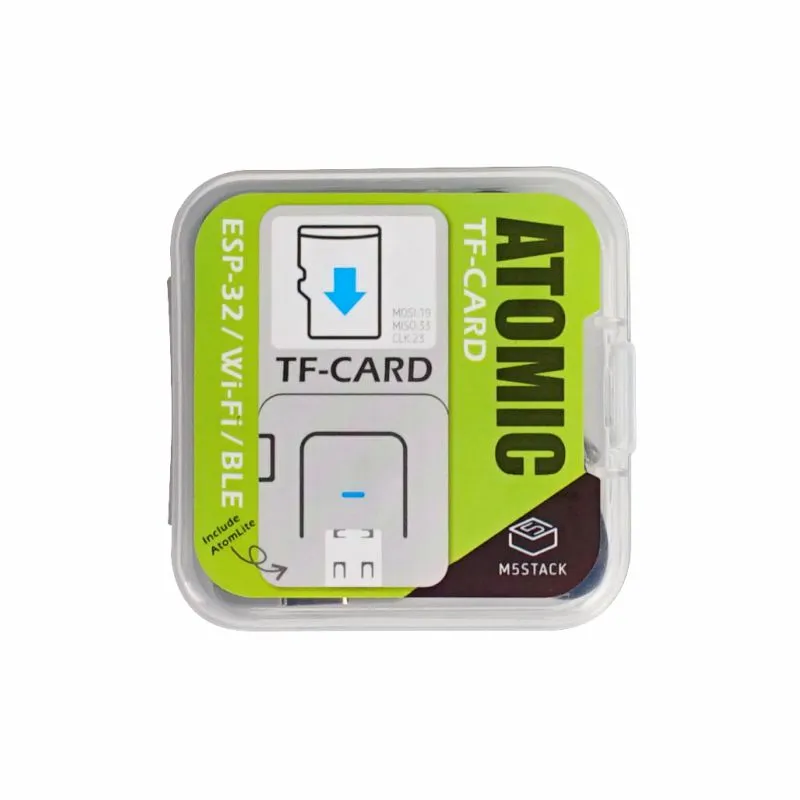

Include
- 1x ATOM TF-CARD
- 1x ATOM Lite
- 1x M2 HEX Key
- 1x M2*3mm Hexagon self tapping screw

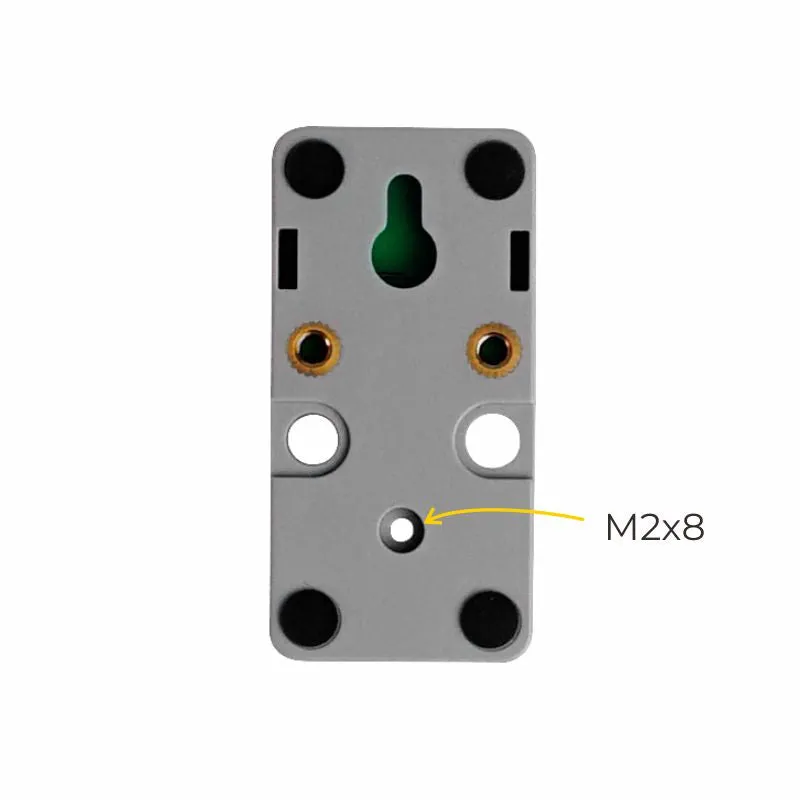

- 1x M2*8mm Hexagon socket cup head machine screw
- 1x 18cm TYPE-C Cable
Application
- Data saving
- File reading and writing
- Logging
- Self elastic slot
Specification
| Resources | Parameter |
|---|---|
| Support type | 16G FAT/FAT32 MicroSD |
| Net weight | 23g |
| Gross weight | 33g |
| Product size | 24*48*18mm |
| Package size | 54*54*20mm |
